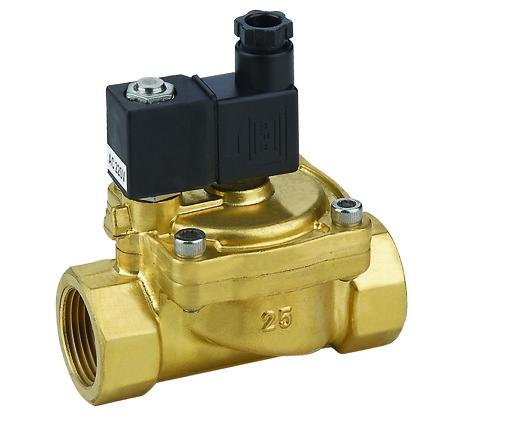

12VDC Electric Solenoid Water Valve 2" Pilot Operated Solenoid Valve NC Low Power

Brand Name : ROUND STAR

Model Number : RSQ-40

Certification : CEROHS

Place of Origin : CHINA

MOQ : 5PCS

Price : 20-100

Supply Ability : 200

Packaging Details : exporting standard package

working medium : water、liquid、air、light oil（viscosity≤20cst）

medium temperature : -5～80℃

working pressure : 0.3 ～ 16bar (details see specification table)

working type : pilot operated

valve body material : brass SS304

sealing material : NBR (medium temperature -5～80℃)

interface thread : G thread NPT thread Rc thread

Working voltage : AC220～240V AC110V 50/60Hz DC24/12V IP65 H degree DN10～25 10VA 6W DN32～50 11VA 9W

Contact Now

12VDC Electric Solenoid Water Valve 2" Pilot Operated Solenoid Valve NC Low Power12VDC Electric Solenoid Water Valve 2" Pilot Operated Solenoid Valve NC Low Power

RSQ series(NC)solenoid valve specification table

Interface size G

Orifice size (mm)

mm

Cv

 working pressure (bar)

Max medium temperature C

mm

Sealing material

Coil insulation degree

mm

 power

normal order code
Min pressure

max pressure

plastic seal

AC220V

G thread

sealing material:blank NBR

E: EPDM V: VITON

air gas

water hotwater

liquid light oil

VA

W

AC

220

V

DC

24

V
AC DC brass SS
3/8〃 13.5 3.5 0.3 16 16 80

Orifice size (mm)

mm

 H 10 6 RSQ-10-AC220V RSQ-10J-AC220V
13.5 3.5 0.3 16 16 130

Orifice size (mm)

mm

 H 10 6 RSQ-10-E-AC220V RSQ-10J-E-AC220V
13.5 3.5 0.3 16 16 120

Orifice size (mm)

mm

 H 10 6 RSQ-10-V-AC220V RSQ-10J-V-AC220V

1/2〃

 13.5 3.5 0.3 16 16 80

Orifice size (mm)

mm

 H 10 6 RSQ-15-AC220V RSQ-15J-AC220V
13.5 3.5 0.3 16 16 130

Orifice size (mm)

mm

 H 10 6 RSQ-15-E-AC220V RSQ-15J-E-AC220V
13.5 3.5 0.3 16 16 120

Orifice size (mm)

mm

 H 10 6 RSQ-15-V-AC220V RSQ-15J-V-AC220V
3/4〃 18 7.6 0.3 16 16 80

Orifice size (mm)

mm

 H 10 6 RSQ-20-AC220V RSQ-20J-AC220V
18 7.6 0.3 16 16 130

Orifice size (mm)

mm

 H 10 6 RSQ-20-E-AC220V RSQ-20J-E-AC220V
18 7.6 0.3 16 16 120

Orifice size (mm)

mm

 H 10 6 RSQ-20-V-AC220V RSQ-20J-V-AC220V
1〃 24 12 0.3 16 16 80

Orifice size (mm)

mm

 H 10 6 RSQ-25-AC220V RSQ-25J-AC220V
24 12 0.3 16 16 130

Orifice size (mm)

mm

 H 10 6 RSQ-25-E-AC220V RSQ-25J-E-AC220V
24 12 0.3 16 16 120

Orifice size (mm)

mm

 H 10 6 RSQ-25-V-AC220V RSQ-25J-V-AC220V

11/4〃

 31 20 0.3 12 12 80

Orifice size (mm)

mm

 H 11 9 RSQ-32-AC220V RSQ-32J-AC220V
31 20 0.3 12 12 130

Orifice size (mm)

mm

 H 11 9 RSQ-32-E-AC220V RSQ-32J-E-AC220V
31 20 0.3 12 12 120

Orifice size (mm)

mm

 H 11 9 RSQ-32-V-AC220V RSQ-32J-V-AC220V
11/2〃 39 28 0.3 12 12 80

Orifice size (mm)

mm

 H 11 9 RSQ-40-AC220V RSQ-40J-AC220V
39 28 0.3 12 12 130

Orifice size (mm)

mm

 H 11 9 RSQ-40-E-AC220V RSQ-40J-E-AC220V
39 28 0.3 12 12 120

Orifice size (mm)

mm

 H 11 9 RSQ-40-V-AC220V RSQ-40J-V-AC220V
2〃 48.5 46 0.3 12 12 80

Orifice size (mm)

mm

 H 11 9 RSQ-50-AC220V RSQ-50J-AC220V
48.5 46 0.3 12 12 130

Orifice size (mm)

mm

 H 11 9 RSQ-50-E-AC220V RSQ-50J-E-AC220V
48.5 46 0.3 12 12 120

Orifice size (mm)

mm

 H 11 9 RSQ-50-V-AC220V RSQ-50J-V-AC220V
