YSA-K series 2-way normally open German PA66 plastic water air solenoid valve 1/2＂ ～ 2＂
Features:
Strong mechanical properties, abrasion resistance, flame retardant, good dielectric properties, resistant to corrosion, can be adapted to general corrosive fluid. Fluid and metal parts (movable iron core, spring) completely isolated, to achieve a true structural corrosion. Substituted piston diaphragm valve long life. Pilot hole large aperture, the path is short and straight, can not easily be clogged particulate matter, precipitate or fluid crystals. Embedded sealing structure, sealing performance more reliable. It is widely used in detergents, printing and dyeing, paper waste and so on.

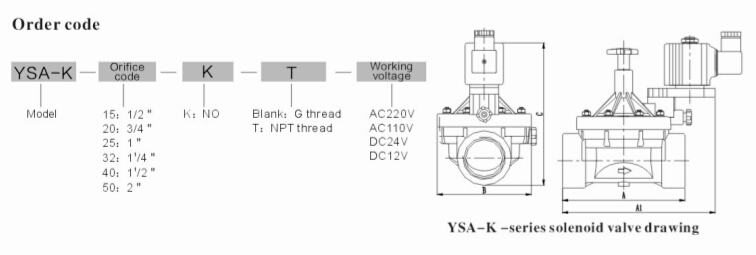

YSA-K -series(NO) solenoid valve specification table
| model | orifice size ( mm ) | Interface size | Cv | working pressure(bar) | dimension | normal order code | Weight(Kg) |
| A | A1 | B | C | AC220V G thread |
| YSA-15K | 15 | 1/2＂ | 3.5 | 0.3～6 | 85 | 111 | 73 | 126 | YSA–15K - AC220V | 0.7 |
| YSA-20K | 20 | 3/4＂ | 7.6 | 0.3～6 | 90 | 116 | 73 | 128 | YSA–20K - AC220V | 0.7 |
| YSA-25K | 25 | 1＂ | 12 | 0.3～6 | 114 | 145 | 90 | 152 | YSA–25K - AC220V | 0.7 |
| YSA-32K | 32 | 11/4＂ | 20 | 0.3～6 | 150 | 173 | 128 | 173 | YSA–32K - AC220V | 0.9 |
| YSA-40K | 40 | 11/2＂ | 30 | 0.3～6 | 152 | 178 | 128 | 176 | YSA–40K - AC220V | 1.0 |
| YSA-50K | 50 | 2＂ | 48 | 0.3～6 | 170 | 195 | 140 | 190 | YSA–50K - AC220V | 1.2 |

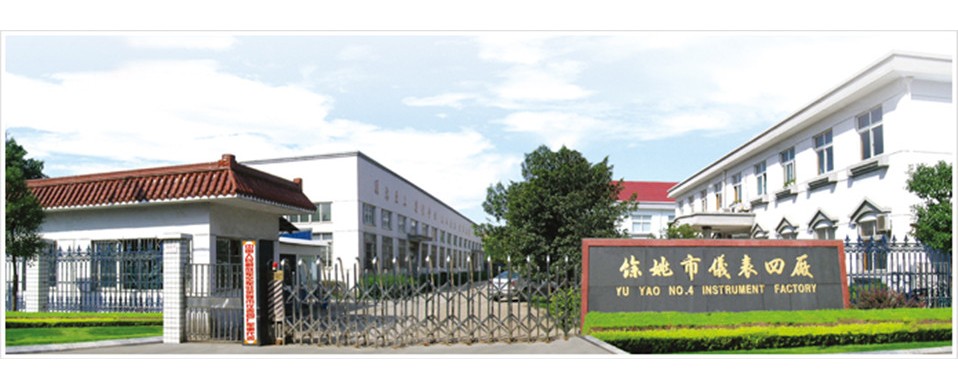

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.
The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to more than twenty countries and areas, such as USA, France, UK, Germany, Italy, Australia, Russia, Taiwan, and the middle east countries etc., and our distributors spread all over the whole country.
